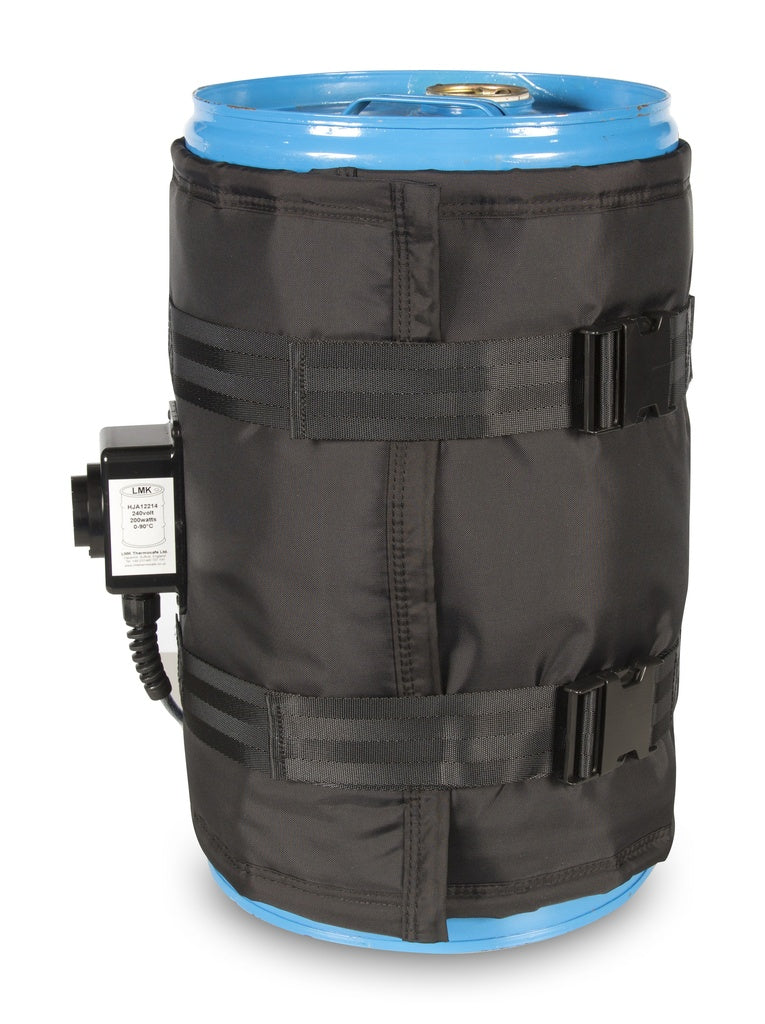

Industrial Drum Heater Jackets – 30L

Warm contents, maintain temperature and reduce liquid viscosity with our 30L industrial drum heater jackets.

Choose the 200W model for gentle warming and temperature maintenance or the 300W model for faster heating. Both feature analogue temperature control and are available in 110V or 240V.

Both models feature an adjustable 0–90°C thermostat, insulated wrap-around construction, an IP54 protection rating and a 5m power cable.

Free Next Working Day Delivery

Power
Voltage Options
£342.50 excl. VAT £411.00 inc. VAT
£342.50 GBP
Sale Sold out

20 in stockFree Next Day Delivery on orders over £100 + VAT

View full details

Industrial Drum Heater Jackets – 30L

Warm drum contents, maintain product temperature and improve material flow with our 30L industrial drum heater jackets. Controlled heating can help reduce viscosity, making suitable materials easier to pump, pour or process.

Choose the 200W model for gentle warming and temperature maintenance, or the 300W model for faster heating and higher contents temperatures. Both feature analogue temperature control, with 110V or 240V options.

30L Drum Heater Jacket – 200W

The 200W drum heater jacket is designed for gentle warming, frost protection and temperature maintenance.

This model is ideal for gently heating and maintaining contents at approximately 40–45°C, depending on the application and conditions. Its wrap-around design distributes heat over a large area, helping reduce the risk of localised overheating and product damage.

Best for: Gentle warming, frost protection, viscosity reduction and temperature maintenance.

Specifications

  • Heating power: 200W
  • Temperature control: Analogue
  • Thermostat range: 0–90°C
  • Voltage options: 110V or 240V
  • Adjustable circumference: 870–1,020mm
  • Jacket height: 400mm
  • Indicative heating rate: 5–10°C per hour
  • Ambient operating temperature: −20°C to +40°C
  • Weight: 1.7kg

Materials: Flame-retardant polyester outer fabric with needled polyester insulation.

30L Drum Heater Jacket – 300W

The 300W drum heater jacket provides greater heating output for applications requiring faster warming or higher contents temperatures than the 200W model.

It is suitable for applications up to approximately 60–70°C, including liquids and low-melting-point solids.

Best for: Faster liquid heating, viscosity reduction and warming low-melting-point materials.

Specifications

  • Heating power: 300W
  • Temperature control: Analogue
  • Thermostat range: 0–90°C
  • Voltage options: 110V or 240V
  • Adjustable circumference: 870–1,020mm
  • Jacket height: 400mm
  • Indicative heating rate: 10–15°C per hour
  • Ambient operating temperature: −20°C to +40°C
  • Weight: 1.9kg

Materials: Flame-retardant polyester outer fabric, silicone-coated glass cloth inner lining and high-density fibreglass insulation.

Check your drum’s circumference and height before ordering to ensure a suitable fit.

Which 30L Drum Heater Should I Choose?

Choose the 200W model for gentle warming and temperature maintenance around 40–45°C.

Choose the 300W model when faster heating or applications around 60–70°C are required.

These contents temperatures are supplier guidance, not guaranteed results. Select the voltage that matches your electrical supply.

Common Applications

Depending on the material’s heating requirements and compatibility, controlled drum heating can help:

  • Reduce viscosity in oils, lubricants and other thick liquids
  • Make suitable resins, adhesives, soaps and coatings easier to handle
  • Warm suitable waxes, fats and low-melting-point materials
  • Maintain temperature during storage or processing
  • Prepare suitable food ingredients and process liquids for use

Always choose a heater and temperature setting appropriate for the contents and drum.

Features Shared by Both Models

  • Wrap-around fitting with retaining straps and quick-release buckles
  • Adjustable analogue temperature control
  • IP54 protection rating
  • 5m power cable
  • CE and UKCA markings
  • Manufactured in ISO 9001-approved facilities
  • Custom sizes available on request

Both models are designed for continuous, 24-hour operation when installed and used in accordance with the manufacturer’s instructions.

Heating Performance

The 0–90°C thermostat range describes the available control settings, not a guarantee that the contents will reach 90°C.

Actual heating performance depends on the material, fill level, drum type, starting temperature, ambient conditions and heat loss.

Indicative heating rates are:

  • 200W drum heater: 5–10°C per hour
  • 300W drum heater: 10–15°C per hour

These figures are guides, not guaranteed heat-up times.

Indoor and Outdoor Use

Both models are designed for indoor use. Outdoor use requires an additional cover.

The ambient operating range is −20°C to +40°C, referring to the surrounding air temperature.

Free Next Working Day Delivery

Choose your heating power and voltage from the available variations above to order your 30L Drum Heater Jacket with free next working day delivery.

30L Drum Heating Jacket

Materials and Construction

Our 30L drum heater jackets use insulated, wrap-around construction to help retain heat around the drum. The materials vary between the 200W and 300W models.

30L Drum Heater – 200W

Designed for gentle warming and temperature maintenance.

  • Outer fabric: Flame-retardant polyester
  • Insulation: Needled polyester
  • Fitting: Retaining straps and quick-release buckles
  • Jacket height: 400mm
  • Adjustable circumference: 870–1,020mm
  • Weight: 1.7kg

30L Drum Heater – 300W

Designed for faster heating and higher-temperature applications than the 200W model.

  • Outer fabric: Flame-retardant polyester
  • Inner lining: Silicone-coated glass cloth
  • Insulation: High-density fibreglass
  • Fitting: Retaining straps and quick-release buckles
  • Jacket height: 400mm
  • Adjustable circumference: 870–1,020mm
  • Weight: 1.9kg

Operating Environment

Both models have an IP54 protection rating and a 5m power cable. They are designed for indoor use; outdoor use requires an additional manufacturer-supplied cover.

The ambient operating temperature range is −20°C to +40°C, referring to the surrounding air temperature.

Manufacturing

Both models are manufactured in ISO 9001-approved facilities. Custom sizes are available on request.

  • For 30L drums — check your drum’s circumference and height against the fitting dimensions before ordering.
  • Two heating outputs — choose 200W or 300W to suit your heating requirements.
  • Gentle warming or faster heating — the 200W model suits gentle warming and temperature maintenance; the 300W model provides faster heating and higher contents temperatures.
  • Adjustable 0–90°C thermostat range — control settings to suit your application. Actual contents temperatures depend on the model and operating conditions.
  • Analogue temperature control — straightforward thermostat adjustment on both models.
  • Voltage options — available in 110V or 240V to match your electrical supply.
  • Helps reduce viscosity — makes suitable liquids easier to pump, pour and process.
  • Insulated construction — helps retain heat around the drum.
  • Simple wrap-around fitting — retaining straps and quick-release buckles secure the jacket in place.
  • IP54 protection rating and 5m power cable.
  • Designed for continuous operation — suitable for 24-hour use in accordance with the manufacturer’s instructions.
  • Free Next Working Day Delivery.

FAQ

What is the difference between the 200W and 300W heaters?

The 200W model is designed for gentle warming, frost protection and temperature maintenance, with supplier guidance on contents' temperatures around 40–45°C. The 300W model provides faster heating and is suitable for applications up to approximately 60–70°C, depending on conditions.

Will the heater jacket fit my drum?

Both models have an adjustable circumference of 870–1,020mm and a height of 400mm. Check these measurements against your drum before ordering.

How long does it take to heat the contents?

Heating rates are 5–10°C per hour for the 200W model and 10–15°C per hour for the 300W model. Actual heating times depend on the material, fill level, drum type, starting temperature and surrounding conditions.

Does the 0–90°C thermostat mean the contents will reach 90°C?

No. 0–90°C is the thermostat’s control range, not a guaranteed contents temperature. The temperature reached depends on the heater’s power, the material being heated, and heat loss from the drum.

Can I use the heater outdoors or in cold conditions?

Both models are designed for indoor use, with an ambient operating range of −20°C to +40°C. Outdoor use requires an additional manufacturer-supplied cover. Always install and operate the heater in accordance with the manufacturer’s instructions.
