Industrial Drum Heater Jacket

Heats standard 200–220L drums with a 1,100W industrial heater jacket and an adjustable temperature range of 0–90°C. Analogue or digital temperature control. IP54 rated - 5m cable.

200–220L Drum Heater Jacket

Our 200–220L Drum Heater Jacket provides controlled heating for standard industrial drums, helping warm contents, maintain temperature, and reduce liquid viscosity where required.

With 1,100W of heating power and an adjustable temperature range of 0–90°C, it suits a wide range of industrial heating applications.

Free Next Working Day Delivery

Power
Voltage Options
£720.50 excl. VAT £864.60 inc. VAT
£720.50 GBP
Sale Sold out

20 in stockFree Next Day Delivery on orders over £100 + VAT

View full details

200–220L Drum Heater Jacket

Warm drum contents, maintain temperature and improve product flow with our 200–220L Drum Heater Jacket. Designed for standard industrial drums, it provides controlled heating for materials that need gentle warming or reduced viscosity to make them easier to pump, pour or process.

With 1,100W of heating power and an adjustable temperature control range of 0–90°C, this industrial drum heater is available with analogue or digital control.

Choose Your Temperature Control

Analogue Drum Heater Jacket — 110V or 240V

A straightforward option with an adjustable analogue thermostat. Choose the voltage that matches your electrical supply.

Digital Drum Heater Jacket — 240V

A digital controller makes temperature settings easy to read and adjust. Available in 240V only.

Both options are designed for 200–220L drums and feature an IP54 protection rating and a 5m power cable.

Why Use a Drum Heater Jacket?

Low temperatures can make certain liquids thicker and more difficult to handle. Controlled warming can help:

  • Reduce viscosity and improve material flow
  • Make contents easier to pump, pour or process
  • Maintain product temperature during storage or use
  • Help protect suitable contents against frost
  • Prepare materials for the next stage of production

Common Applications

Drum heater jackets can support heating and temperature maintenance across food production, cosmetics, pharmaceuticals, coatings and general industry.

Depending on the material’s heating requirements and compatibility, applications include:

  • Oils and lubricants
  • Resins and adhesives
  • Waxes and fats
  • Paints, varnishes and coatings
  • Soaps and other viscous liquids
  • Chemicals and process liquids
  • Suitable food ingredients

Always select a temperature appropriate for the material and drum being heated.

Technical Specifications

  • Drum capacity: 200–220L
  • Heating power: 1,100W
  • Temperature control range: 0–90°C
  • Control options: Analogue or digital
  • Analogue voltage options: 110V or 240V
  • Digital voltage: 240V only
  • Protection rating: IP54
  • Power cable length: 5m

Heating Performance

Actual heating times depend on the material, fill level, starting temperature, ambient temperature and drum type.

The 0–90°C range refers to the temperature control settings. The temperature reached by the contents will depend on the application and operating conditions.

Heating a Smaller Drum?

For smaller containers, explore our 30L Drum Heater Jacket.

Free UK Mainland Delivery

Choose your preferred controller and voltage above to order your 200–220L Drum Heater Jacket, with free UK mainland delivery.

200L Drum Heater Data Sheet

Materials and Construction

Both the analogue and digital 200–220L Drum Heater Jackets use the same insulated construction:

Flame-retardant polyester outer fabric

Silicone-coated glass cloth inner lining

High-density fibreglass insulation to help reduce heat loss and retain warmth around the drum

Wrap-around design with retaining straps and quick-release buckles for straightforward fitting

Both versions are manufactured in ISO 9001-approved facilities, with custom sizes available on request.


Analogue and Digital: What’s the Difference?

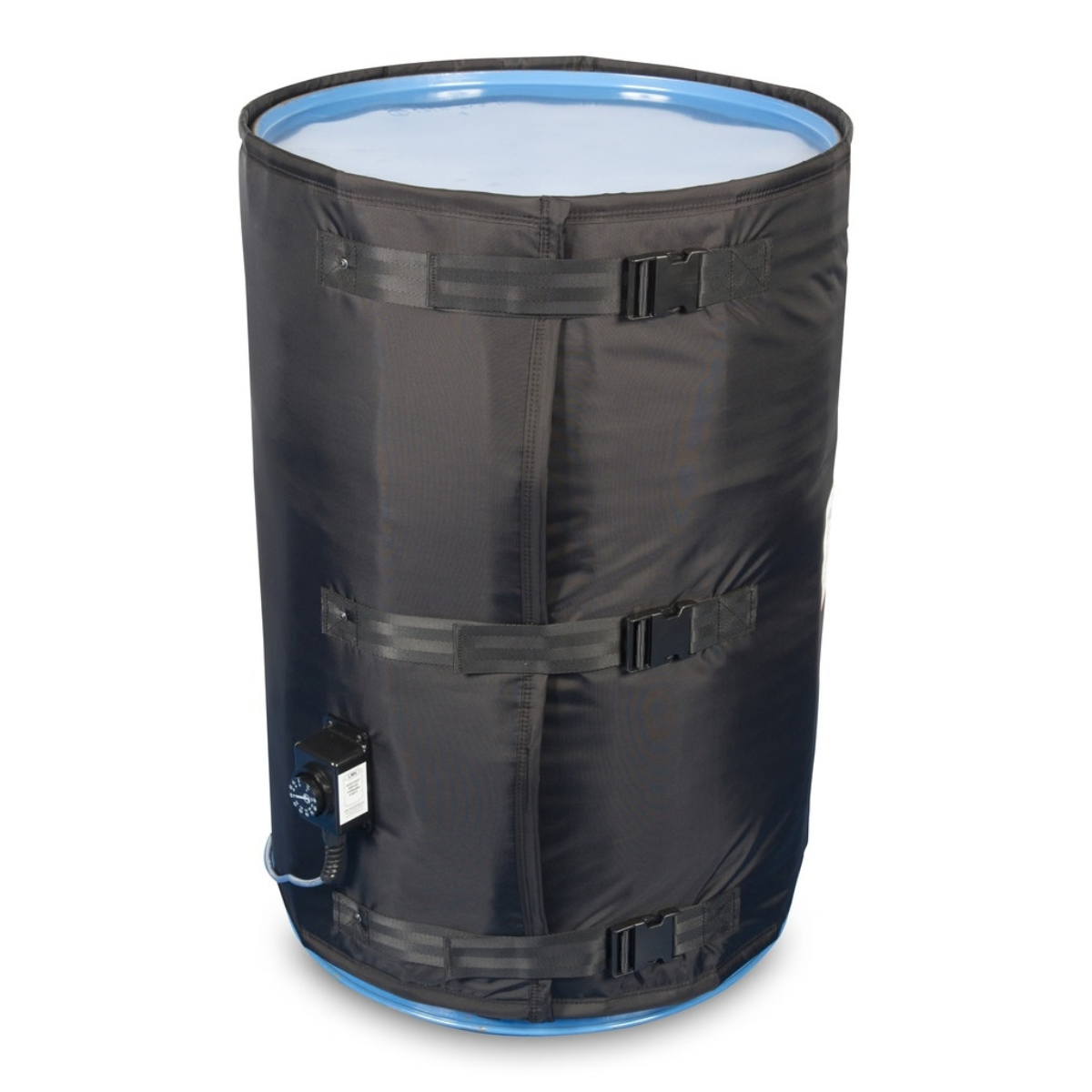

Analogue Drum Heater Jacket

A straightforward option with adjustable analogue temperature control.

Temperature control range: 0–90°C

Voltage options: 110V or 240V

Ambient operating temperature: −20°C to +40°C

Weight: 5.4kg

The analogue model can operate in colder surroundings, including below-zero ambient temperatures.

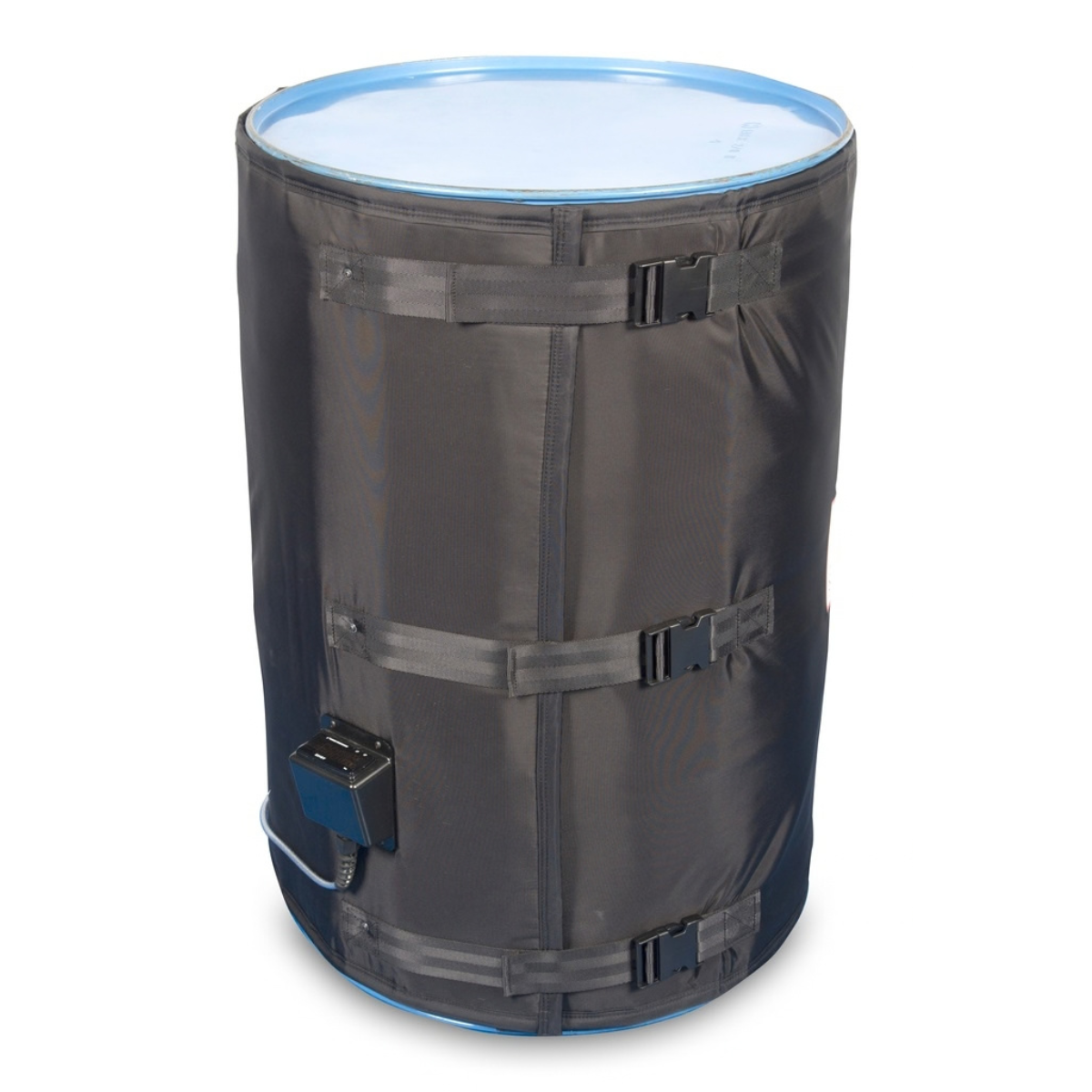

Digital Drum Heater Jacket

A digital thermostat makes temperature settings easy to read and adjust.

Temperature control range: 0–90°C

Voltage: 240V only

Ambient operating temperature: 0°C to +40°C

Weight: 5.9kg

The digital model is intended for environments where the surrounding air temperature stays at or above 0°C.

Heating Performance

Both versions provide 1,100W of heating power, with a supplier-indicated heating rate of 3–5°C per hour and applications up to approximately 60–70°C.

Actual performance depends on the contents, fill level, drum type, starting temperature and surrounding conditions. The 0–90°C thermostat range is not a guarantee that the contents will reach 90°C.

Where Can They Be Used?

Both versions are designed for indoor use. Outdoor use requires an additional manufacturer-supplied cover, and the surrounding temperature must remain within the chosen model’s ambient operating range.

Both models have an IP54 protection rating and a 5m power cable.

Fits standard 200–220L drums — designed for industrial drum heating.

1,100W heating power — helps warm contents and maintain temperature.

Adjustable 0–90°C temperature control range — set the temperature to suit your application.

Analogue or digital control — choose your preferred controller.

Voltage options — analogue models available in 110V or 240V; digital models in 240V only.

Helps reduce viscosity — makes suitable thick liquids easier to pump, pour and process.

Supports frost protection — helps protect suitable contents from low temperatures.

IP54 protection rating.

5m power cable — provides flexibility when positioning the drum.

Free UK mainland delivery.

FAQ

What size drum does this heater jacket fit?

The jacket is designed for standard 200–220L drums, with an adjustable circumference of 1,800–1,950mm and a height of 850mm.

Check your drum’s dimensions before ordering to ensure a suitable fit.

What is the difference between analogue and digital control?

The analogue model offers straightforward adjustable temperature control and is available in 110V or 240V.

The digital model has a digital thermostat for easy temperature setting and monitoring and is available in 240V only.

The analogue model operates in surrounding temperatures of −20°C to +40°C, while the digital model requires 0°C to +40°C.

How long does it take to heat a drum?

Both models provide 1,100W of heating power, with a supplier-indicated heating rate of 3–5°C per hour. This is a guide rather than a guaranteed heating time.

Actual performance depends on the contents, fill level, drum type, starting temperature and ambient conditions.

Will the contents reach 90°C?

The 0–90°C range refers to the thermostat settings, not a guaranteed contents temperature. Both models are suitable for applications up to approximately 60–70°C.

Achievable temperatures depend on the material being heated and the operating conditions.

Can I use the drum heater outdoors?

Both models are designed for indoor use. Outdoor use requires an additional manufacturer-supplied cover.

The surrounding air temperature must also remain within the chosen model’s operating range: −20°C to +40°C for analogue or 0°C to +40°C for digital.
